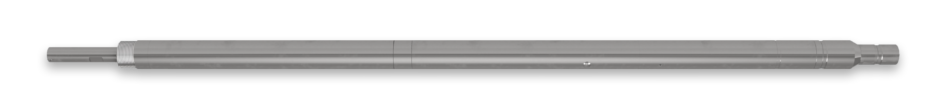

The TTS Wireline Pressure Setting Tool is used to provide the stroke and force required to set bridge plugs, packers, cement retainers, and other tension bolt/shear ring released devices via wireline. An electrically activated power charge (gas generator) produces a sufficient volume of high-pressure gas. This gas pressure, acting upon the piston area, provides the required amount of force to sever tension bolts or shear rings that commonly attach the downhole tools to the setting tool.
Applications
The TTS HPHT Wireline Pressure Setting Tool is designed to provide the stroke and force required to set bridge plugs, cement retainers, packers, and other tension bolt/shear ring released devices via wireline. An electrically activated power charge (gas generator) produces a sufficient volume of high-pressure gas. This gas pressure, acting upon the piston area, provides the required amount of force to sever tension bolts or shear rings that commonly attach the downhole tools to the setting tool.
Applications
The TTS Hydrostatic Setting Tool is a non-explosive setting tool used to provide the stroke and force required to set bridge plugs, packers, cement retainers, and other tension bolt/shear ring released tools. The tool utilizes a non-explosive actuator to allow bottom hole pressure (BHP) to enter the tool. The BHP acting upon the internal piston area generates the required amount of force to sever tension bolts or shear rings that commonly attach the plug/packer to the setting tool, all without the use of explosives. The Hydrostatic Setting Tool eliminates the dangers associated with handling explosives and the lost time and inconvenience of the imposed radio silence required when explosives are utilized. It can be deployed by using a work string (coil tubing or jointed pipe).
Applications

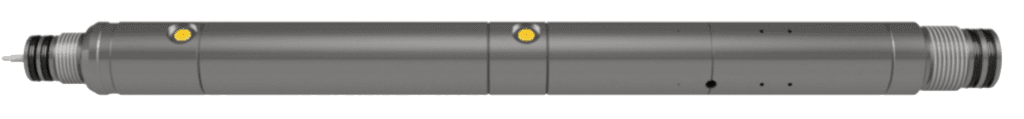

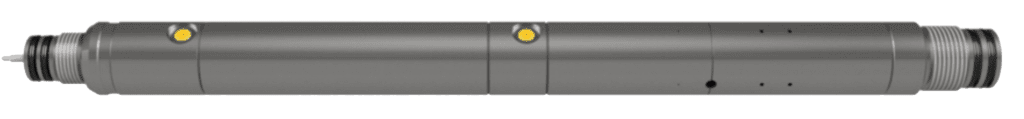

The TTS Electro-Hydraulic Actuator is non-explosive tool used to open ports to flood hydrostatic setting tools. Allows wellbore fluids to enter in setting tools on demand when proper voltage is applied to the actuator.
