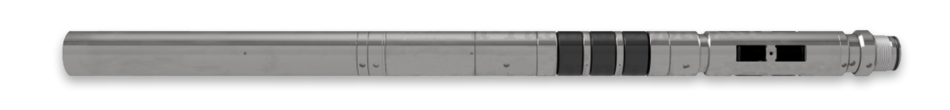

Paragon II Retrievable High-Pressure (HP) Tubing Packer

The Paragon II High Pressure Tubing Packer is a high-pressure version of the standard Paragon II Packer. It contains all the same features that create the high utility and high performance of the original Paragon II Packer including the Retrievable Dual Seal Bore (RDSB) design, caged slips located below the multi-durometer sealing stack and release mechanism that is not loaded by hanging weight or pressure differentials. The TTS Paragon High Pressure Tubing Packer utilizes our newly developed Hercules Sealing Stack. It has been successfully tested to API 11D1 V0 and V3 criterion up to 7500 psi differential at 300 degrees Fahrenheit. The packer can be constructed from a variety of corrosion-resistant alloys and trimmed with premium elastomers. It is currently offered for tubing sizes from 2 3/8”-5 ½”.

Features/Benefits

• Complies with API 11D1 specifications
• One-trip installation, one-trip retrieve Tubing Packer
• Straight pull to release, no downward manipulation required (Slick Line Retrievable).
• Packer element tested to API V3 and V0 testing validation
• Capable of setting in corrosion-resistant alloys and high tensile tubulars
• Large ID/OD ratio for larger flow area
• Dual Bore design allows for full unrestricted ID on sealing accessories

Applications

• Tubing & Casing Patch Systems
• Velocity String Installations
• Thru-Tubing Gas Lift System Installations
• Gravel Pack Packer, Gage, Choke or Shut-In Valve Hang-Offs
• Thru-Tubing Cement Retainer
• Retrievable Bridge Plug
